Product Characteristics
1.One-piece high quality special heat tube, low alloy steel shaft bearing capacity is strong, light weight, long life and other characteristics.
2.Product configuration wear sensor alarm device.
3.The wheel hub system maintenance simple, wearing parts in any place can buy.
4.The caliper, brake disc, gas chamber adopts domestic well-known brand, has many characteristics, such as crack resistance, long service life.
··Braking performance: Disc brakes are superior to drum brakes, especially at high speeds and during frequent braking.
··Heat dissipation: Disc brakes dissipate heat faster, reducing brake fade.
··Weight: Disc brakes are generally lighter than drum brakes.
··Cost: Disc brakes have higher manufacturing costs but lower maintenance costs.

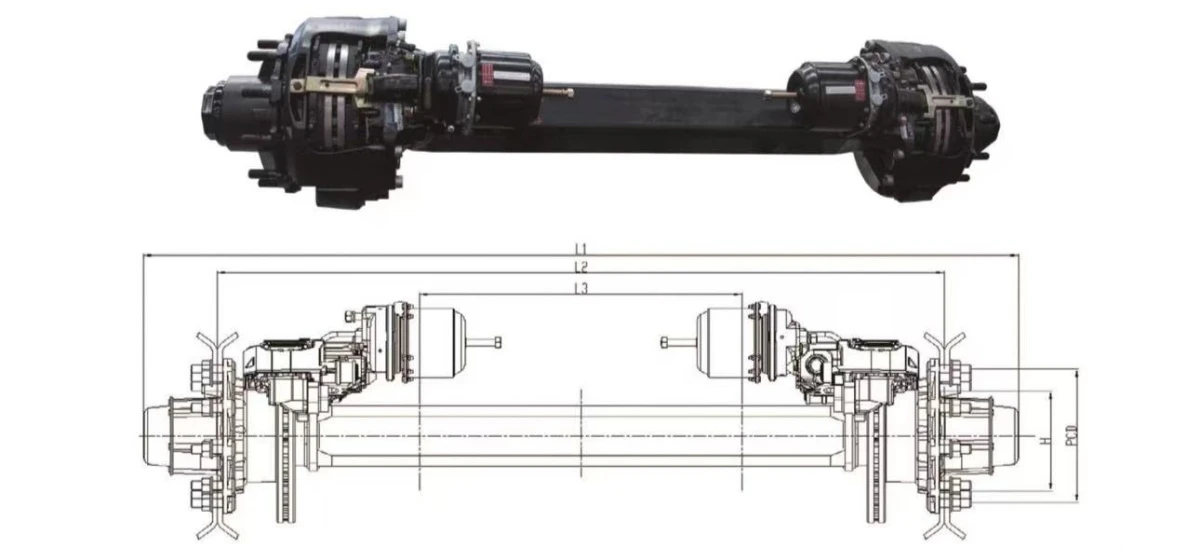

| DISC-BRAKE Axle Specifications | |||||||||||||
| Axle Type |
Max. Capacity (T) |
Track (mm) |
Disc Brake (mm) |
Bearing | Spring Seat Installation L3 |
Axle Beam (mm) |
Wheel Fixing |
Total Length (mm) |
Recommended Wheel |
Axle Weight (KG) |
|||
| Type |
Size (mm) |
Stud |
P.C.D (mm) |
H(mm) | |||||||||
| 13F1N08A | 13 | 1840 | Disc | 430*45 | HM518445/10 | ≥930 | 150 | 10*M22*1.5 ISO | 335 | 280.8 | 2180 | 22.5 | 352 |
| 13F1N07A | 13 | 1840 | Disc | 430*45 | HM518445/10 | ≥930 | 150 | 10*M22*1.5 ISO | 285.75 | 219.8 | 2180 | 22.5 | 350 |
Note:
(1) Track length L2 is optional
(2) Available with ABS system
