Product Introduction
Basic concept:

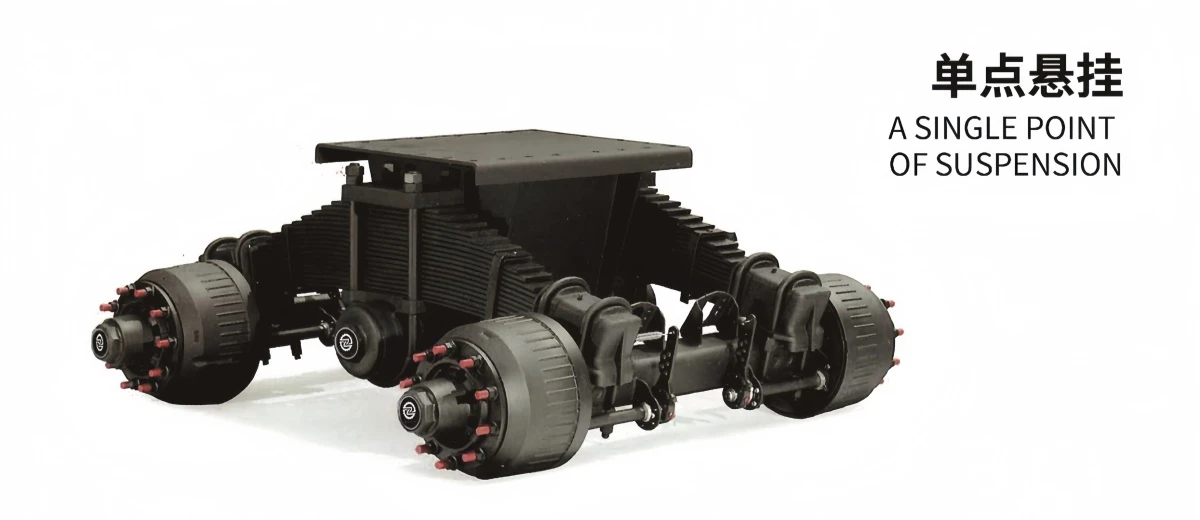

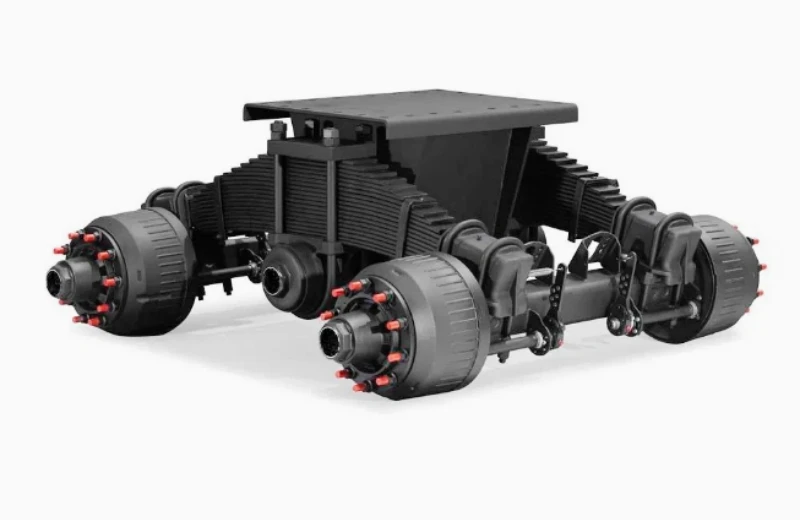

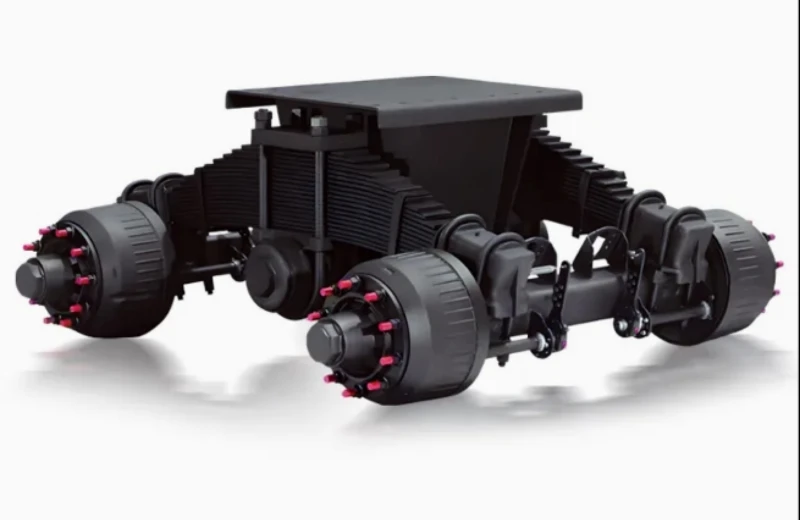

Single-point suspension is a suspension system characterized by concentrating the suspension components at a single connection point, usually at the center of the axle or frame. This design simplifies the structure, reduces the number of components, and improves vehicle stability and handling.
Working Principle:
Single-point suspension connects the axle to the frame through a central point, allowing the axle to swing freely within a certain range to adapt to uneven roads.
The combination of shock absorbers and springs effectively absorbs road vibrations, providing a comfortable ride.
··Simple Structure: Reduces the number of components, lowering manufacturing and maintenance costs.
··High Stability: The central connection point design improves vehicle stability and handling.
··Strong Adaptability: Effectively handles various road conditions, providing a smooth driving experience.
··Lightweight: Simplified structure helps reduce vehicle weight and improve energy efficiency.

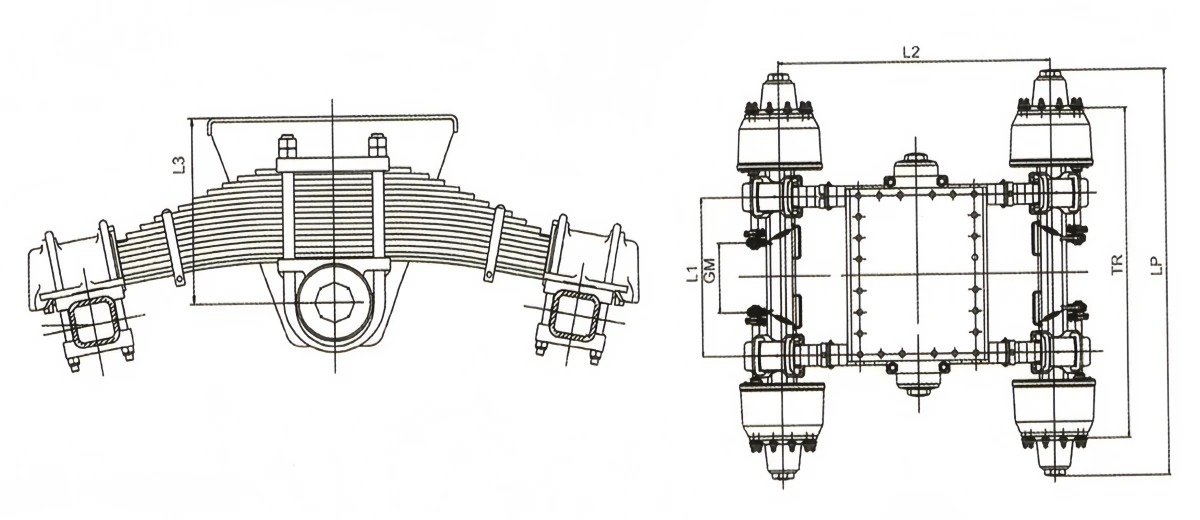

| Axle Type | Maximum Load | Axle Beam (mm) | Total Length (mm) | Track (mm) | Centre Distance of Brake Chamber (mm) | Brake Type × Width | Wheel Fixing | Recommended Wheel | Bearing | Wheel Base | Table Center | Spring Seat Installation | ||
| Stud | P.C.D (mm) | H (mm) | ||||||||||||
| XT3209PH | 32000 | □150 | 2300 | 1870 | 293 | 420×220 | 10×M22×1.5 ISO | 335 | 281 | 8.5V-20 | 32314/32222 | 1550 | 600 | 900 |
| XT3601PH | 36000 | □150 | 2296 | 1870 | 280 | 420×220 | 10×M22×1.5 ISO | 335 | 281 | 8.5V-20 | 32314/32222 | 1550 | 600 | 900 |
| XT2402PHLF | 24000 | □150 | 2150 | 1840 | 389 | 420×180 | 6-M22×2 | 335 | 290 | 8.5V-24 | 33213/33118 | 1400 | 600 | 980 |
| XT2403PHLF | 24000 | □150 | 2188 | 1870 | 408 | 420×200 | 6-M22×2 | 335 | 290 | 8.5V-20 | 33213/33118 | 1400 | 600 | 980 |
| XT2802PHLF | 28000 | □150 | 2184 | 1840 | 354 | 420×200 | 6-M22×2 | 335 | 290 | 8.5V-24 | 33215/32219 | 1550 | 600 | 900 |
| XT3202PH | 32000 | □150 | 2282 | 1870 | 282 | 420×200 | 6-M22×2 | 335 | 290 | 8.5V-24 | 32314/32222 | 1550 | 600 | 900 |
| XT3602PHLF | 36000 | □150 | 2282 | 1870 | 274 | 420×200 | 6-M22×2 | 335 | 290 | 8.5V-20 | 32314/32222 | 1550 | 600 | 900 |
| XT2410PH | 24000 | □150 | 2180 | 1840 | 342 | 420×220 | 10×M22×1.5 ISO | 335 | 281 | 8.5V-20 | HM518445/10 | 1550 | 600 | 900 |
| XT3210PH | 32000 | □150 | 2200 | 1850 | 348 | 420×220 | 10×M22×1.5 ISO | 335 | 281 | 8.5V-20 |
HM518445/10 HM220149/10 |
1550 | 600 | 900 |
After-sale Services
The after-sales service for single-point suspension includes warranty policy, technical support, repair services, spare parts supply, regular maintenance recommendations, and customer training, ensuring comprehensive support and protection for customers during use.
