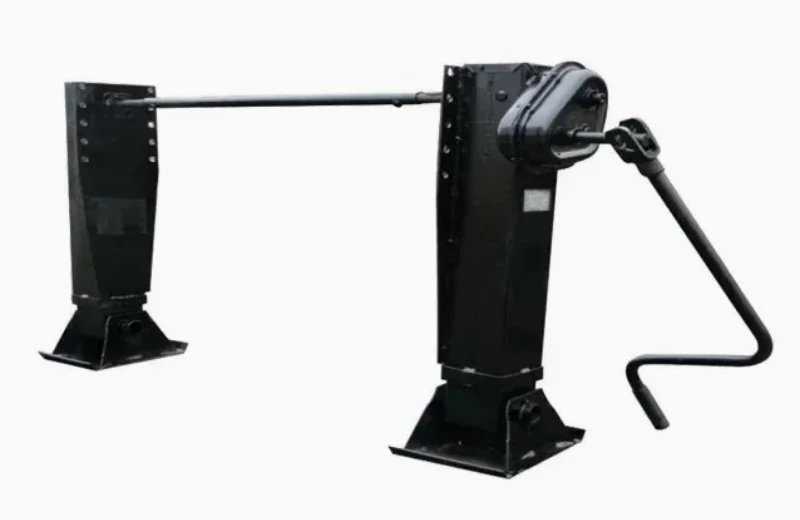

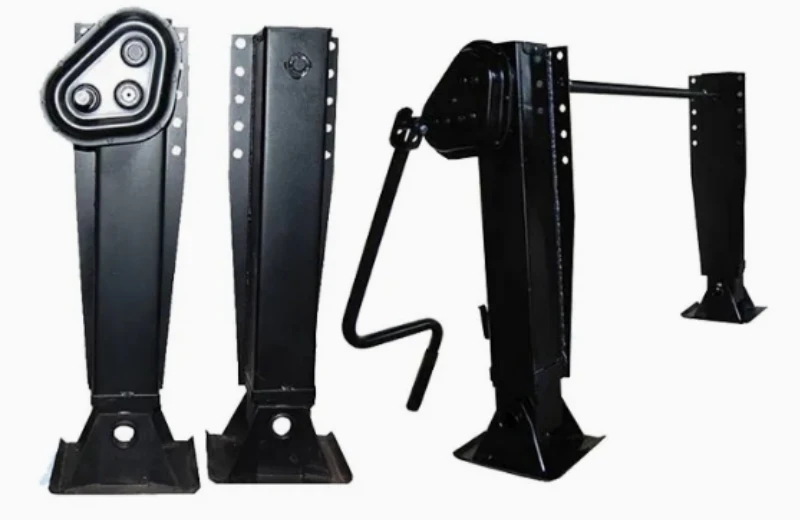

Product Introduction
Main Functions
Stable Support: Provides reliable support when the trailer is parked, ensuring it remains level.
Convenient Loading/Unloading: Keeps the trailer stable after detachment from the tractor, facilitating cargo handling.
Protects the Chassis: Reduces direct contact between the trailer chassis and the ground, extending its lifespan.
Structural Features
Manual or Electric Operation: Manual landing gear is adjusted by a handle, while electric landing gear is driven by a motor for easier operation.
Adjustable Height: Legs are typically equipped with adjustment functions to adapt to different ground conditions.
High-Strength Materials: Made of steel or aluminum alloy, ensuring durability and load capacity.
Regular Maintenance: Check the lubrication and tightness of the legs to ensure proper functioning.
Reasonable Load: Avoid exceeding the load capacity of the landing gear to prevent damage.
Ground Inspection: Ensure the ground is level and firm before extending the legs to prevent sinking or tilting.
Standard Specifications
| Capacity | Static | Weight | Crank Force | Low Gear | High Gear |
| 28000kg/Pair | 80000kg/Pair | 102kg | 0.9mm Per Turn(mm/r) of Handle | 9mm Per Turn(mm/r) of Handle |

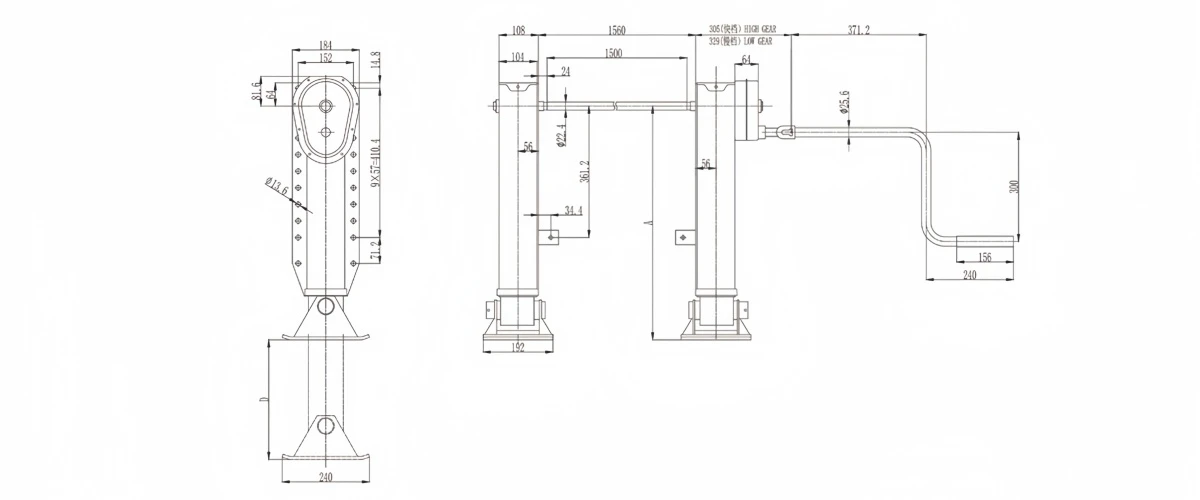

Standard Models
| One Side Opertion Landing Gear Assy | |||
| Types | Part No. | D (mm) Lift D (mm) | A (mm) Height A (mm) |
| 260001A | A | 430 | 923 |
| 260001G | G | 430 | 779 |
| 260001R | R | 430 | 806 |
| 260001S | S | 430 | 829 |
| 260001T | T | 430 | 803 |
| 260002A | A | 480 | 873 |
| 260002G | G | 480 | 829 |
| 260002R | R | 480 | 856 |
| 260002S | S | 480 | 879 |
| 260002T | T | 480 | 853 |
