Product Characteristics
1.Simplified Structure: Features a single connection point design, making it simple, compact, easy to install, and maintain.
2.Lightweight Design: Utilizes lightweight materials to reduce overall vehicle weight, improving fuel efficiency and transportation performance.
3.Flexibility: Compatible with various light vehicles and trailers, offering strong adaptability.
4.Basic Damping Function: Offers basic damping performance, suitable for low-load and simple road conditions.
··Low Cost: Simple structure with low manufacturing costs, suitable for budget-limited applications.
··Easy Maintenance: The single connection point design reduces the number of components, lowering maintenance difficulty and costs.
··Easy Installation: Simple structure allows for quick and easy installation, saving time and labor.
··Compact Space Usage: Compact structure with minimal space usage, ideal for designs with limited space.

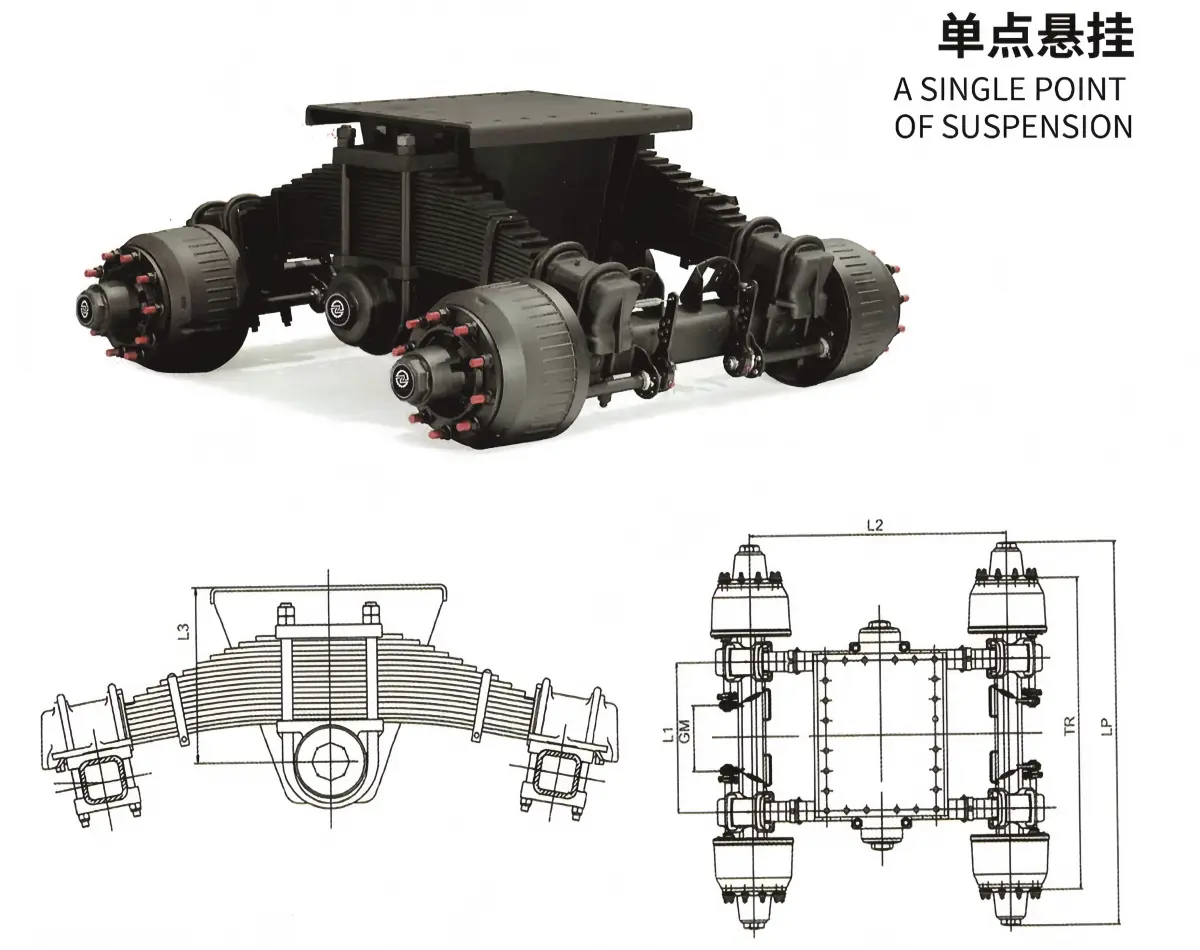

A Single Point of Suspension Specification
| Axle Type | Maximum Load |
Axle Beam (mm) |
Total Length (mm) |
Track (mm) |
Centre Distance of Brake Chamber (mm) |
Brake Type × Width | Wheel Fixing | Recommended Wheel | Bearing | Wheel Base | Table Center | Spring Seat Installation | ||
| Stud |
P.C.D (mm) |
H (mm) |
||||||||||||
| XT3209PH | 32000 | □150 | 2300 | 1870 | 293 | Ф420×220 | 10×M22×1.5 ISO | Ф335 | Ф281 | 8.5V-20 | 32314/32222 | 1550 | 600 | 900 |
| XT3601PH | 36000 | □150 | 2296 | 1870 | 280 | Ф420×220 | 10×M22×1.5 ISO | Ф335 | Ф281 | 8.5V-20 | 32314/32222 | 1550 | 600 | 900 |
| XT2402PHLF | 24000 | □150 | 2150 | 1840 | 389 | Ф420×180 | 6-M22×2 | Ф335 | Ф290 | 8.5V-24 | 33213/33118 | 1400 | 600 | 980 |
| XT2403PHLF | 24000 | □150 | 2188 | 1870 | 408 | Ф420×200 | 6-M22×2 | Ф335 | Ф290 | 8.5V-20 | 33213/33118 | 1400 | 600 | 980 |
| XT2802PHLF | 28000 | □150 | 2184 | 1840 | 354 | Ф420×200 | 6-M22×2 | Ф335 | Ф290 | 8.5V-24 | 33215/32219 | 1550 | 600 | 900 |
| XT3202PH | 32000 | □150 | 2282 | 1870 | 282 | Ф420×200 | 6-M22×2 | Ф335 | Ф290 | 8.5V-24 | 32314/32222 | 1550 | 600 | 900 |
| XT3602PHLF | 36000 | □150 | 2282 | 1870 | 274 | Ф420×200 | 6-M22×2 | Ф335 | Ф290 | 8.5V-20 | 32314/32222 | 1550 | 600 | 900 |
| XT2410PH | 24000 | □150 | 2180 | 1840 | 342 | Ф420×220 | 10×M22×1.5 ISO | Ф335 | Ф281 | 7.5V-20 | HM518445/10 | 1550 | 600 | 900 |
| XT3210PH | 32000 | □150 | 2200 | 1850 | 348 | Ф420×220 | 10×M22×1.5 ISO | Ф335 | Ф281 | 8.5V-20 |
HM518445/10 HM220149/10 |
1550 | 600 | 900 |
FAQ
1.Q: What types of vehicles is single point suspension suitable for?
A: Single point suspension is suitable for light trailers, towed vehicles, and small commercial vehicles, especially for low-load and simple road conditions.
2. Q: Is the installation of single point suspension complicated?
A: Single point suspension has a simple structure and is easy to install, usually requiring only a single connection point, saving time and labor.
3. Q: What is the lifespan of single point suspension?
A: With normal use and regular maintenance, the lifespan of single point suspension can be several years, depending on the operating environment.
4. Q: Do you offer customization services?
A: Yes, we support customized accessory services based on customer needs to meet special specifications.
5. Q: What is the warranty period for the accessories?
A: We offer a warranty period of 1-2 years, depending on the product type.
6. Q: How can I order accessories?
A: You can place orders through our website, email, or by contacting a sales representative, with multiple payment methods supported.
7. Q: Do the accessories meet international quality standards?
A: Yes, our accessories comply with international standards such as ISO and DOT, ensuring safety and reliability.
8. Q: Do you support global shipping?
A: Yes, we support global shipping and provide logistics tracking services.
