Product Characteristics
1.Lightweight Design：Uses high-strength lightweight materials to significantly reduce axle weight, improving fuel efficiency and transportation performance while maintaining excellent load capacity.
2.High Load Capacity：Designed with a load capacity of 10 tons, meeting the transportation needs of medium trailers and commercial vehicles, suitable for logistics, construction, and agriculture.
3.High Durability：Heat treatment and anti-corrosion surface coating enhance durability, making it suitable for various road conditions and reducing maintenance costs.
4.Easy Installation：Compact and simple design allows for quick and easy installation, saving time and labor costs, compatible with various vehicle and trailer types.
··Weight Comparison
10T Lightweight Axle: Uses high-strength lightweight materials, significantly reducing weight and improving fuel efficiency.
Traditional Axle: Typically made of ordinary steel, heavier weight increases vehicle energy consumption.
··Load Capacity Comparison
10T Lightweight Axle: Designed with a load capacity of 10 tons, meeting the needs of medium trailers and commercial vehicles.
Traditional Axle: May have higher load capacity, but with increased weight and cost.
··Durability Comparison
10T Lightweight Axle: Heat treatment and anti-corrosion surface coating enhance durability, suitable for various road conditions.
Traditional Axle: Good durability, but may face corrosion or fatigue issues under extreme conditions.
··Application Scenarios Comparison
10T Lightweight Axle: Suitable for light and medium trailers, commercial vehicles, and logistics equipment, especially for scenarios prioritizing fuel efficiency and performance.
Traditional Axle: More suitable for heavy-duty vehicles and high-load scenarios, such as construction vehicles or large trucks.

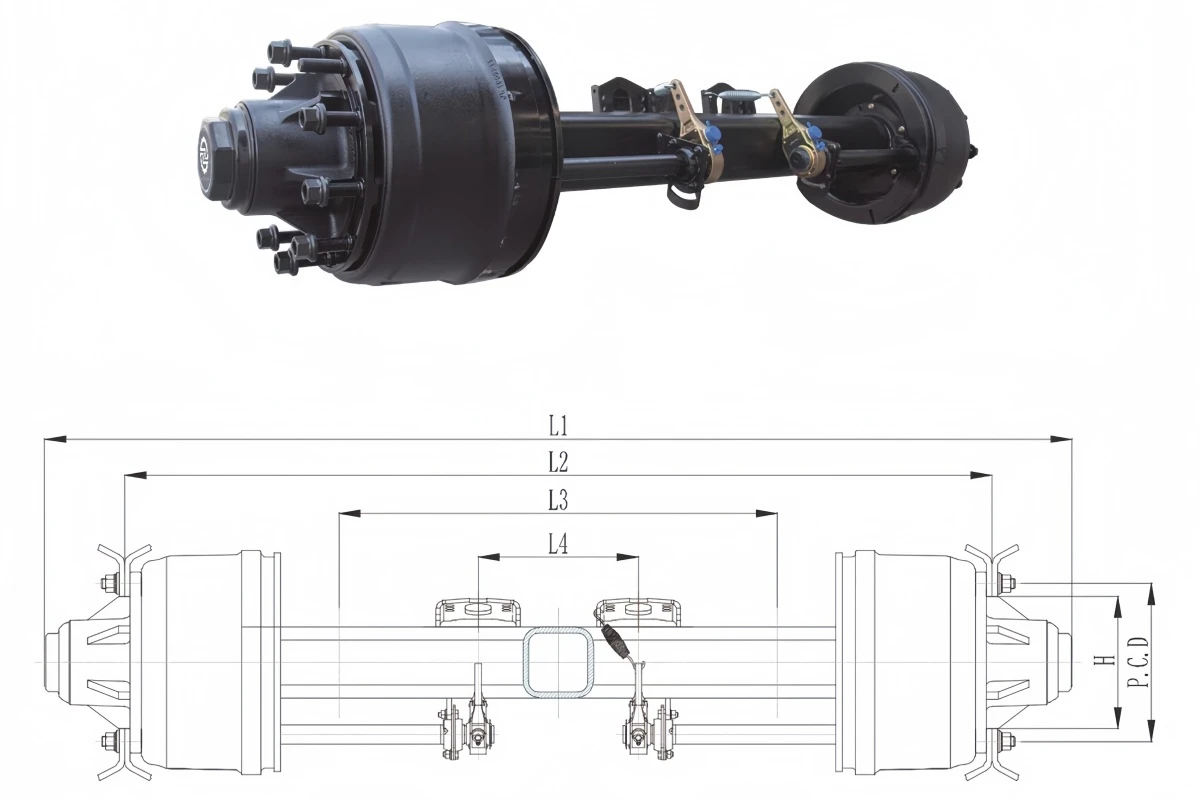

| 10T Lightweight Axle Technical Parameters | |||||||||||||
| Axle Type |
Max. Capacity (T) |
Track (mm) L2 |
Brake (mm) |
Bearing |
Spring Seat Installation L3 |
Axle Beam (mm) |
Centre Distance of Brake Chamber (mm) L4 |
Wheel Fixing |
Total Length (mm) L1 |
Recommended Wheel |
Axle Weight (kg) |
||
| Stud |
P.C.D (mm) |
H (mm) |
|||||||||||
| 10F0B10 | 10 | 1840 | Ф420×180 | HM518445/10 | ≥980 | □150 | 380 | 10×M22×1.5 ISO | 335 | 280.8 | ~2180 | 7.5V-20 | 318 |
| 10F0B11 | 10 | 1840 | Ф420×220 | HM518445/10 | ≥930 | □150 | 340 | 10×M22×1.5 ISO | 335 | 280.8 | ~2180 | 7.5V-20 | 323 |
Note:
(1) Track length L2 is optional
(2) Available with ABS system
(3)Automatic slack adjuster is optional
FAQ
1. Q: What materials are used for trailer accessories?
A: Our trailer accessories are primarily made of high-strength steel or aluminum alloy, ensuring durability and lightweight design.
2. Q: What types of trailers are these accessories compatible with?
A: Our accessories are compatible with various trailer types, including flatbed trailers, box trailers, and refrigerated trailers.
3. Q: Is the installation of these accessories complicated?
A: Our accessories are designed for simplicity and come with detailed installation instructions, making the process quick and easy.
4. Q: Do the accessories have anti-corrosion properties?
A: Yes, our accessories are treated with surface coatings (such as galvanization or painting) to provide excellent anti-corrosion performance.
5. Q: Do you offer customization services?
A: Yes, we support customized accessory services based on customer needs to meet special specifications.
6. Q: Do the accessories meet international quality standards?
A: Yes, our accessories comply with international standards such as ISO and DOT, ensuring safety and reliability.
